Dump Trailer
Product Description

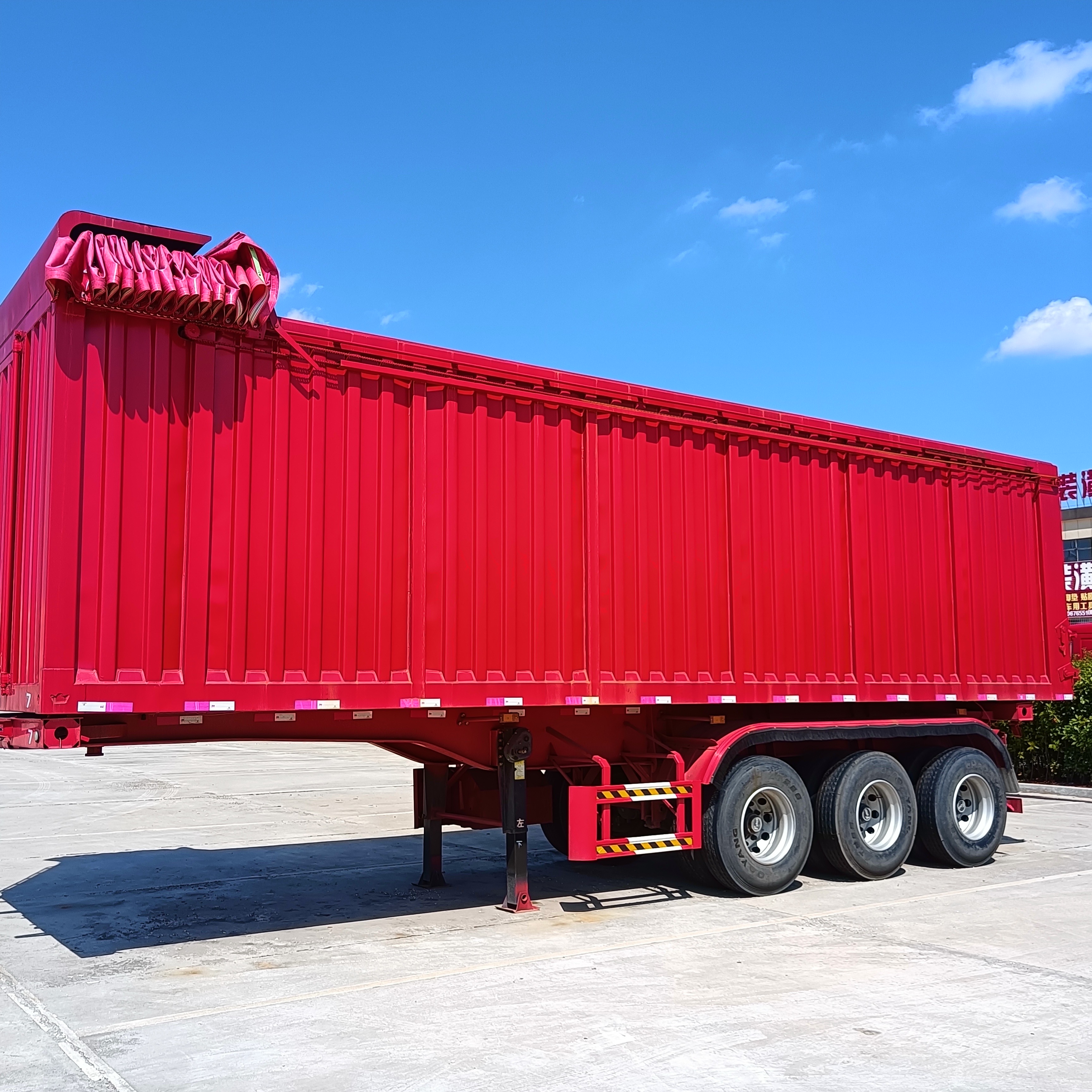

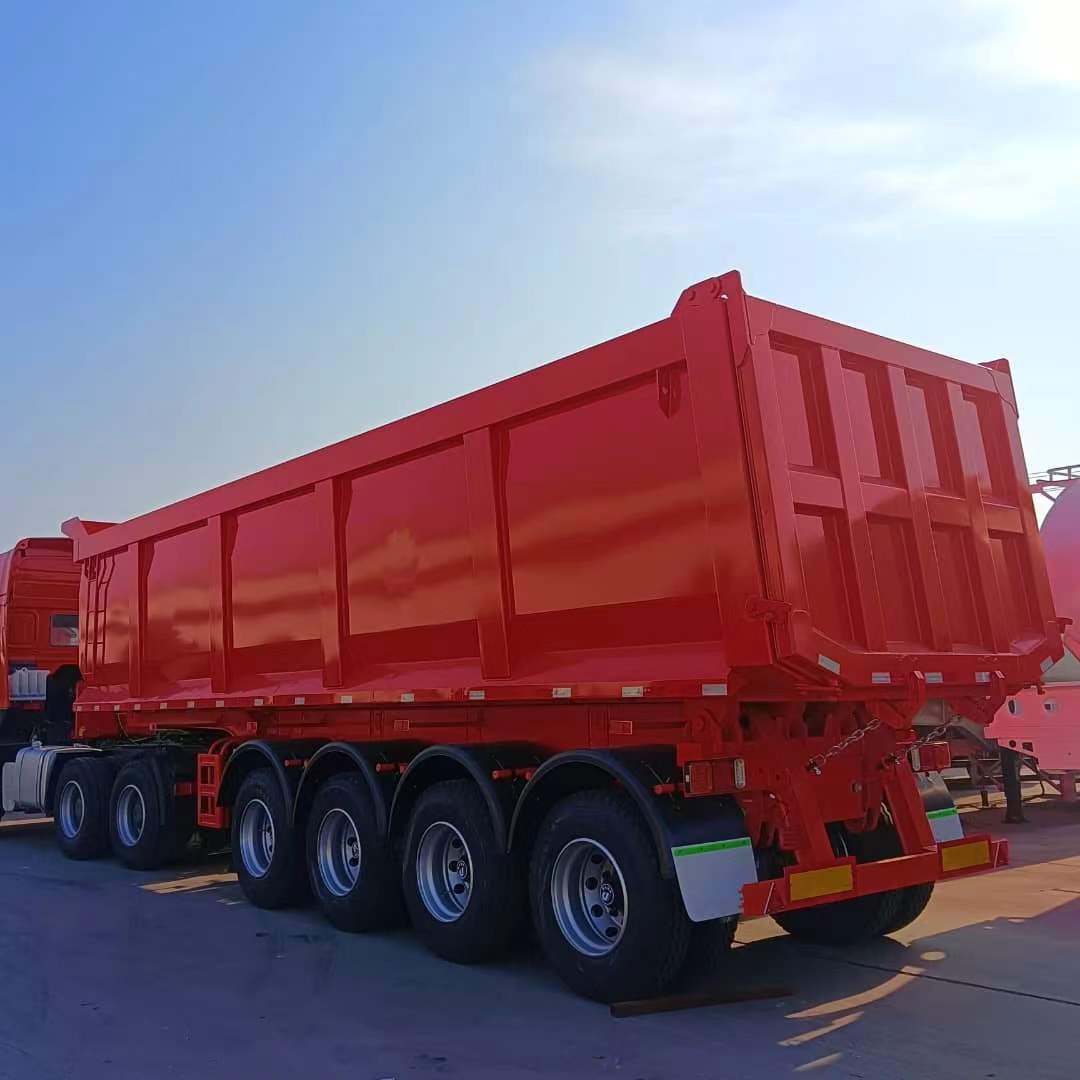

The dump semi trailer, also known as a tipper trailer, is a heavy-duty vehicle designed to transport and dump loose materials such as sand, gravel, and construction waste.
It consists of a hydraulic system that allows the trailer bed to be raised at an angle, allowing the load to be discharged from the rear end.
The trailer is typically made of high-strength steel and can carry a payload of several tons. Dump semi trailers are widely used in the construction and mining industries and are an essential tool for transporting materials to and from worksites.
| Outside Dimensions (LWH) | 1000025003450mm | |
|---|---|---|
| Pay-Load | 80 Ton | |
| Tare Weight | 9,000 kg | |
| Bucket | Floor : 8 mm Sidewall : 6 mm | |
| Hydraulic system | 3 Hydraulic Cylinders ( 1 Main Front Hydraulic Cylinder + 2 Assistant Hydraulic Cylinder ) | |
| Wheel Base | 8390+1310+1310(mm) | |
| Tires | specification | 12.00R20 |
| No. of tires | 12 | |
| Spare tire carriers | 2 | |
| Axles | Brand | FUWA (BPW optional) |
| No. of axles: | 3 | |
| Axle-load | 25 Ton / Axle | |
| Brakes | Style | Compressed Air Brake |
| Brake chamber | double air chamber | |
| System | Dual line braking system | |
| Main Beam | material | I beam ,Q345B, automatic submerged arc welded |
| specification | Height is 500mm,upper plate is 14mm,lower plate is 16mm,middle is 8mm | |
| Cross Beam material | Q235B | |
| Side beam | Channel steel | |
| Accessory | One tooling box with a set of standard trailer tool | |
| Voltage | 24V | |
| Receptacle | 7 ways (7 wire harness) | |
| Lights | Front corner marker lamp :red ;reflector lamp :white | |
| Side marker :orange | ||
| Rear lamp :red; rear reflector :white; turn single lamp :orange |
